- Immediate self-priming without prior filling of the pump body.
- Maximum operational safety even after several months of inactivity.
- It does not require a foot valve or filter.
- Ease of checking and inspecting valves without the use of tools.
- Zero maintenance.
- Extremely easy to disassemble

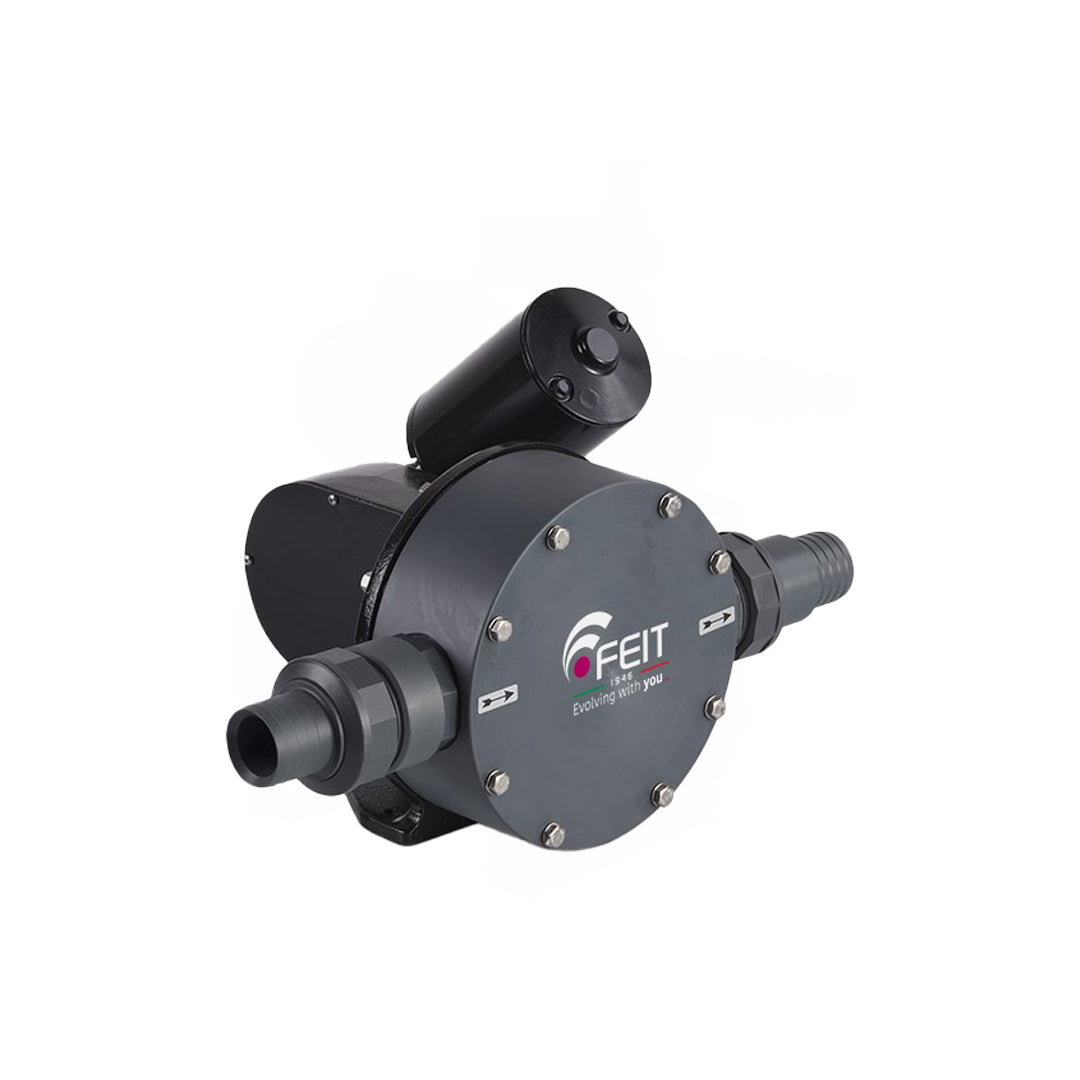

The PVM Series diaphragm electric pumps have the particular characteristic of not clogging even when pumping liquids containing solid impurities such as: SAND, MUD, SOIL, METAL FILINGS AND CHIPS, EMERY, SLUDGE, SEEDS, CIGARETTE BUTTS, ALGAE, HAIR, COTTON, ETC.
The diaphragm pump can be considered the universal pump since the simple movement of the diaphragm originates the suction and delivery phases, therefore there are no delicate parts such as impellers, stuffing boxes, mechanical seals, foot valves etc. Consequently its duration is almost unlimited.
- BODY: PVC BRONZE FOR PVM 0.5B
- MEMBRANE: NBR
- VALVES: NBR
- SHAFT: 316 STAINLESS STEEL
- PROTECTION: IP 55
-
Technical Features
Type
Kw
VOLT
Laps/1′
Rmp
Flow rate
L/min
Prevalence
m
PVM 0.16
0.20
12-24
1300
26
5
PVM 0.2
0.26
12-24//230M.-230/380T
1450
31
6
PVM 05
0.37
75
8
PVM 0.5B
0.37
77
PVM 1R
0.37
24//230M.-230/380T
100
PVM 1
0.55
120
9
Dimensions and Weight
TYPE D H R THE weight (Kg) PVM 0.2 38 280 200 380 10 PVM 0.5 40 340 250 470 18 PVM 0.5B 40 340 250 480 28 PVM 1 R 40/45 400 300 580 22 PVM 1 45 420 300 580 24 Suitable for:
-
Sea water, bilges of amphibious vehicles and vessels.
-
Transfer of fuels in general: Diesel, kerosene, petroleum, naphtha, fluid oils, etc.
-
Drying of basements, tunnels, cavities, wells for electrical and telephone cables.
-
Drainage water, rainwater, muddy, muddy and sandy water.
-
Fresh water supply for caravans, boats, concrete mixers.
-
Draining of machine tool coolants, including those containing filings and shavings, emery, sawdust, etc.
-
Laundry drains, sewage pits, cesspits.
-
Transfer of coolants, disinfectants, herbicides, etc.
Special Versions
Performance
-
